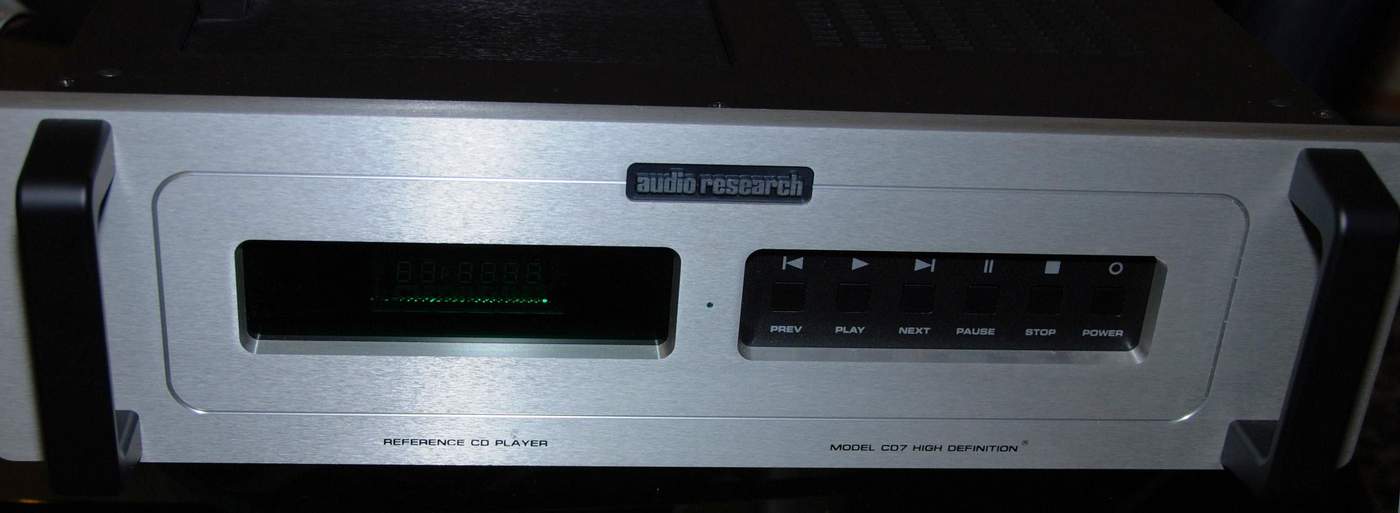

REFERENCE CD7 Specifications:
OUTPUTS, ANALOG: (Stereo)

   1. Balanced XLR 5.4V RMS (+14.6dBv) max.
   2. Single-Ended RCA 2.7V RMS (+8.6dBv) max.

OUTPUT IMPEDANCE: (Analog)
660 ohms BAL, 330 ohms SE.

FREQUENCY RESPONSE:
0.5-20,000Hz +0 -1dB.

SIGNAL TO NOISE RATIO:
110dBA

DISTORTION:
.005% 1kHz

RESOLUTION:
24 BIT DELTA-SIGMA DAC.

CHANNEL SEPARATION:
95dB 1kHz.

OUTPUTS, DIGITAL:
(to external Digital-to-Analog Converter)

   1. XLR Balanced AES/EBU
      110-ohm 4V P-P.
   2. BNC coax SPDIF 75-ohm 0.7V P-P.

        SIGNAL FORMAT:

    * Sampling Frequency: 44.1kHz.
    * Quantization Bit: 16bit linear per channel.
    * Channel bit rate: 4.3218Mb/sec.
    * Channel modulation code: EFM (8-14 modulation).
    * Error correction: CIRC (cross interleave Reed Solomon Code).

DRIVE MECHANISM (top load):

    * Wow & Flutter: Unmeasurable (Quartz stability).
    * Discs: Accepts 5" (12cm) and 3" (8cm) sizes.

OPTICAL PICKUP: (top load):

    * Type: 3-beam LDGU (Laser Diode & Grating Unit), with holographic diffraction light pen.
    * Laser: GaAIAs semiconductor, 780nm, 0.5mW maximum output.
    * Servo: Digitally-controlled low-inertia linear positioning actuator.

        JITTER REDUCTION:
High-stability crystal-controlled re-clocking for all outputs.

POWER REQUIREMENTS (detachable power cord):
100-135VAC 60Hz (200-270VAC 50/60Hz), 120 watts maximum. (5 watts maximum when unit is turned off).

COMPLIANCE: RF interference complies with FCC and CE MARK.

DIMENSIONS: 19" (48cm) W x 5 1/4" (13.4 cm) H x 15 3/8" (39.0 cm) D. Handles extend 1-1/2" (3.8 cm) forward of the front panel. Rear connectors extend 3/4" (1.9 cm)

WEIGHT: 32.5 lbs. (14.8 kg) Net; 43 lbs. (19.5 kg) Shipping.
